How to Use the ThingsRecon Public API

Retrieve API Information

• Generate a new service account:

To interact with the Thingsrecon API, two key pieces of information are needed: an access token and the project ID.

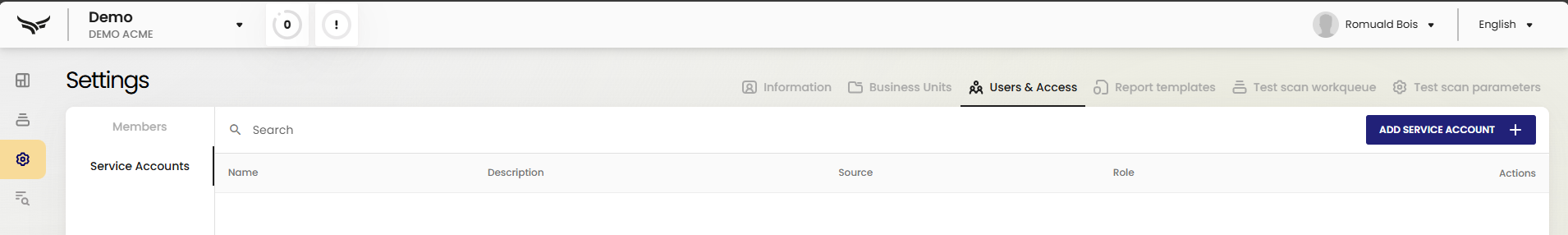

Via the UI, create a new Service Account user under Settings, click on "add service account" on the right hand side :

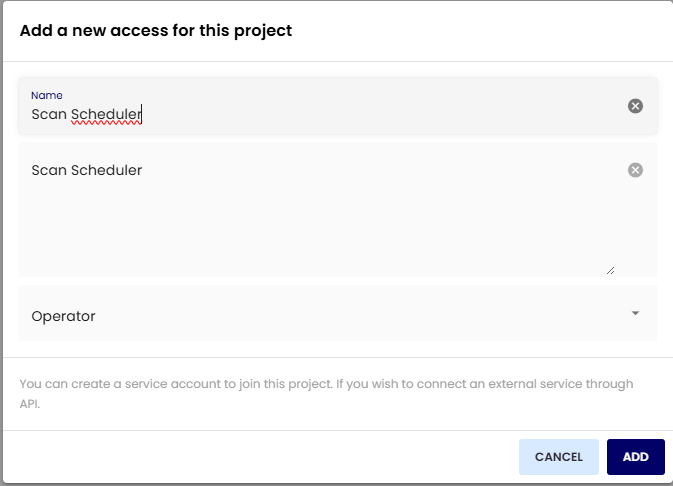

Give a name and a description (optional) and click on "add" button at the bottom of the popup window :

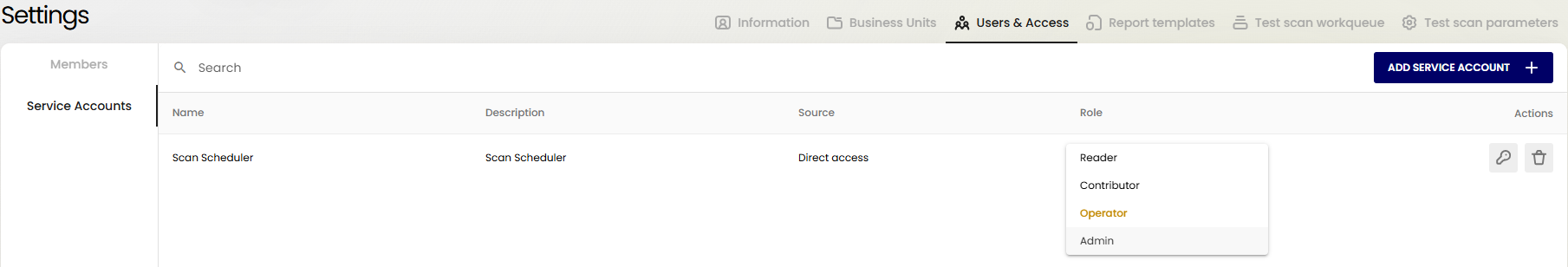

Once created, select a role and make it either an "operator" or an "admin".

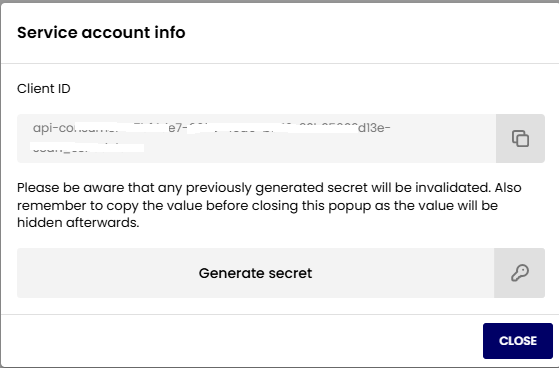

On the far right hand side, a key-shaped icon is visible, click on it to display the secretkey and client ID :

Click on "Generate secret" button to actually generate and display it.

At this stage it is crucial to copy both the secret key and the clientID to a notepad, because this is the ONLY TIME these information will be displayed ever.

Generate an Access Token:

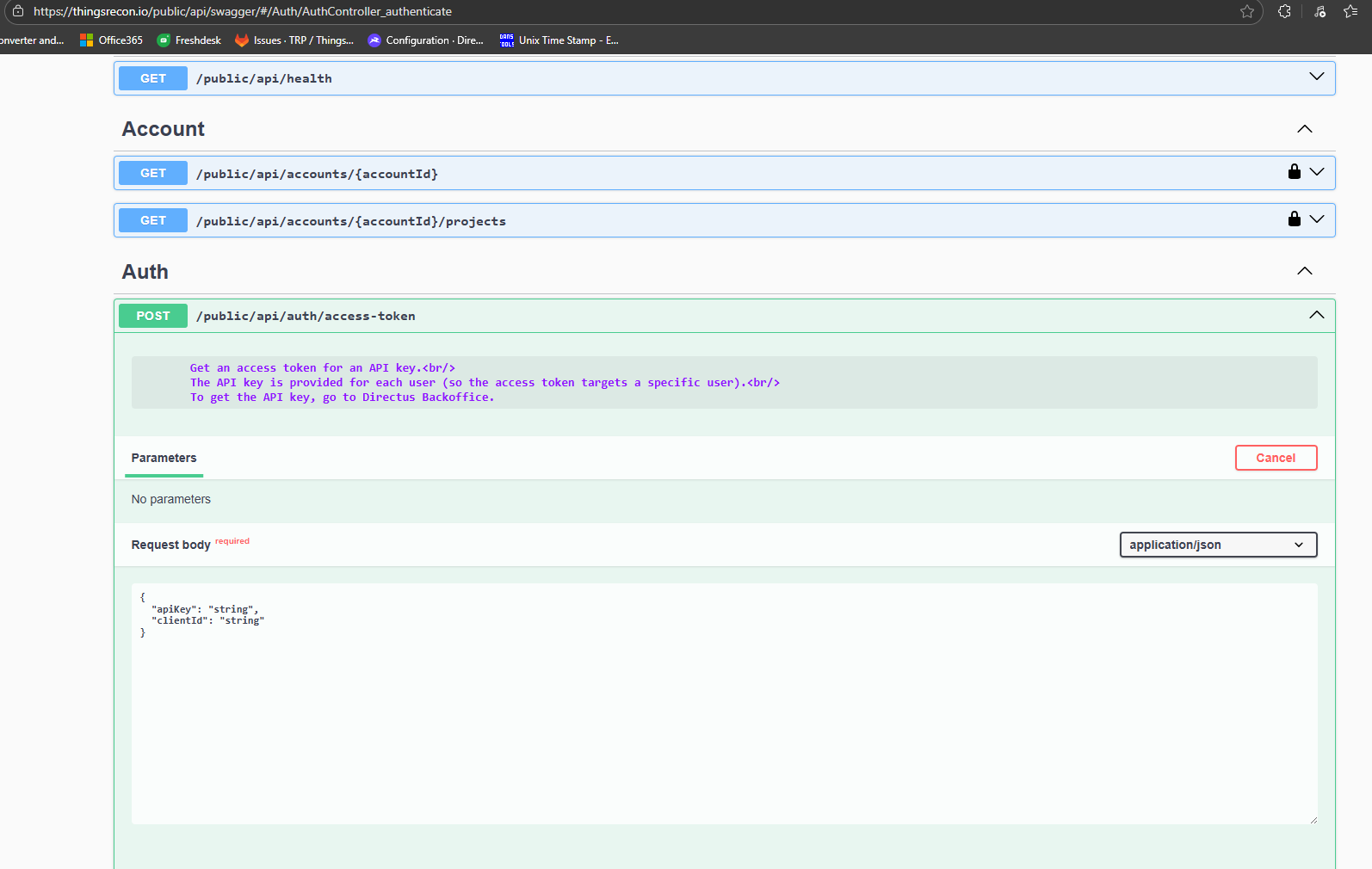

• The POST /public/api/auth/access-token endpoint is used for this.

• The access token is generated by sending your security key to this URL.
• You need to replace "string" with the actual ClientID and Secret from previous step in

{

  "apiKey": "string",

  "clientId": "string"

}

then click on "execute" blue button.

the response is a very long string between double quotes :

Copy the string to a notepad without the surrounding double quotes.

1. Identify the projectId:

   • Every project in Thingsrecon has a unique ID.

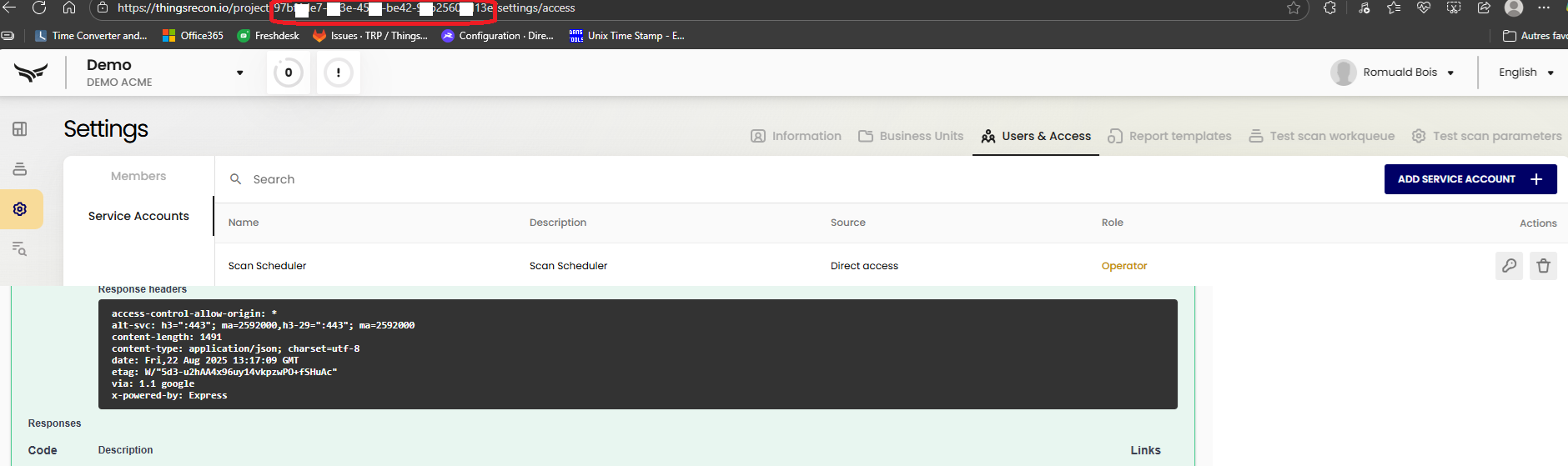

   • You can get this by copying the ID from the URL once connected to the UI and in the appropriate project :

Back to the top of the page, click on "authorize" button:

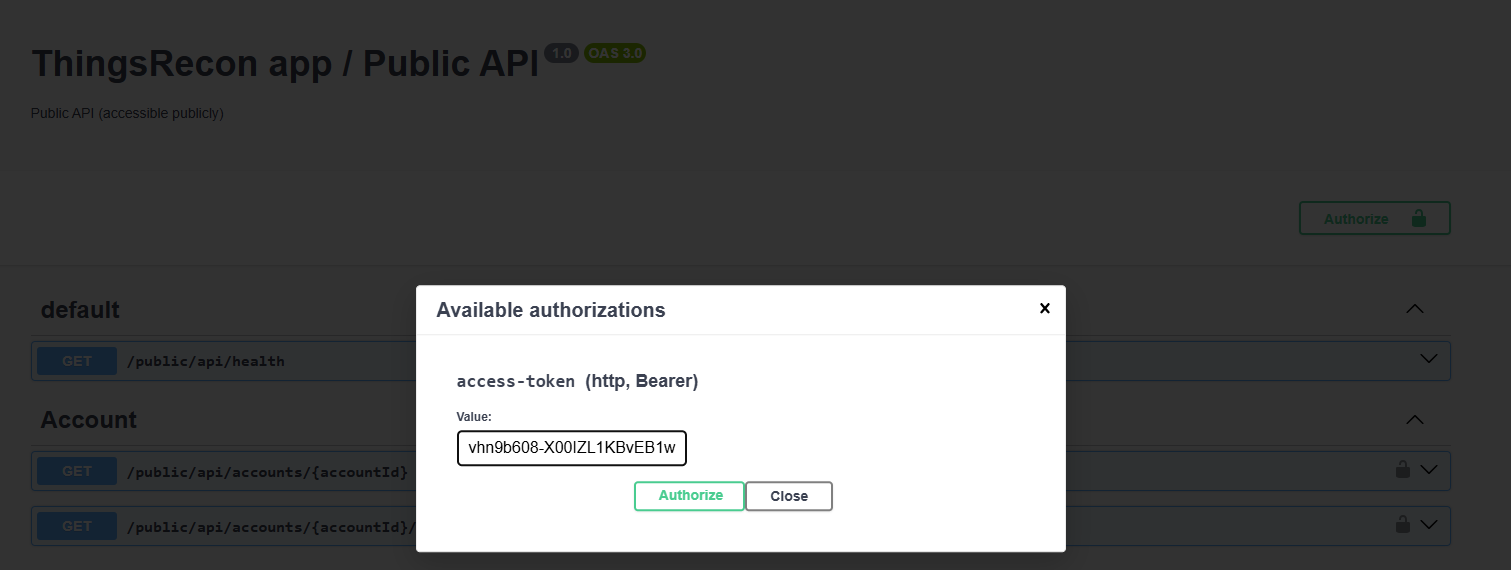

Then paste the Access token string into the "value" field from the next popup window :

Click on "authorize" button to validate and authenticate.

This is crucial to be able to further use the commands from this Swagger UI page.
