Setting Up a Scan

Digital asset discovery across your organisation starts with scanning.

The Scan module provides visibility across your total external attack surface, comprising all your organisation’s managed and unmanaged infrastructure and applications. It automatically detects domains, IP addresses, certificates, software, and other key assets.

Our Scan function uses a combination of passive and active crawling techniques to uncover both known and unknown assets (“Things”) that are exposed externally to the Internet.

Based on your priorities or current specific requirement, you can choose what to scan, when, and how.

Note: Although we use multiple techniques to map out your external attack surface, no vulnerabilities are exploited, no forms are filled, and so on. The Discovery scan behaviour is similar to a visitor browsing the application.

Accessing the Scan functionality

From the Dashboard (which is where you’ll land after logging in), click the Scan Icon in the left-hand navigation panel.

Choosing what to scan

With the ThingsRecon Discovery platform you can go as broad and as deep as necessary to discover and assess digital assets or touchpoints. These might range from points of integration and data exchange (in the form of APIs), to the full spectrum of web applications.

The reach of your scan could be right across your entire organisation, or within the parameters of individual locations, business units, or specific digital assets

Adding scan items

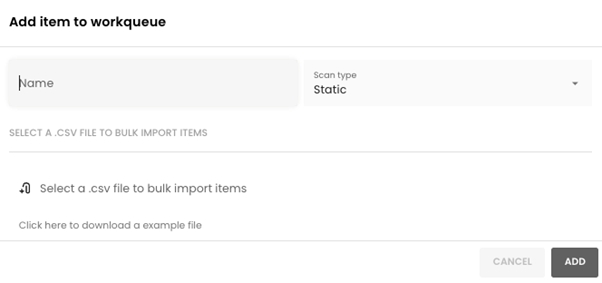

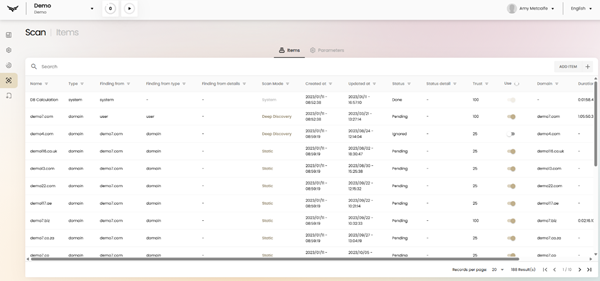

Via the Items view (accessed via the left-hand tab at the top), click Add Item in the upper right corner to enter what, specifically, you want to scan.

Choose between:

To add multiple items at once, use the bulk import function.

Note: Once added, items will appear in the Items Tab with default attributes. (E.g. every Work Queue item is assigned a “trust” level from zero to 100. This refers to the level of confidence that the asset belongs to the organisation. Any item which is manually added to the Work Queue is automatically assigned a 100% trust level.

Choosing the type of scan

Two main types of Discovery scans are available:

Static – scanning only the specific item you entered, staying within the same domain.

1. From a predefined list of domains entered by the user, discover all related Fully Qualified Domain Names (FQDNs) URLs, applications, IPs, etc and all relations between them.

Deep Discovery – a more dynamic scan exploring everything related to your company, giving you a broader view of your digital footprint.

1. From a domain starting point, discover other domains belonging to the organisation
2. From discovered domains, find all other things that are part of your external attack surface
3. Deep Discovery can tell you the likelihood of a domain belonging to your organisation and what techniques have been used to find it.


Discovery scans are typically done first using the default settings in the user interface. However, subsequent Discovery scans can be further configured with a number of parameters. (Setting Scan Parameters). A “reset to default” button can be found at the bottom of the page to undo any previous parameters.

Setting Scan Parameters

Select the Parameters view (top-right tab) for additional scan configuration settings. These parameters allow you to be more granular in your Discovery and adjust the scope of your scans if needed based on initial results.

This view is divided into three tabs (switch between them using the left-hand panel).

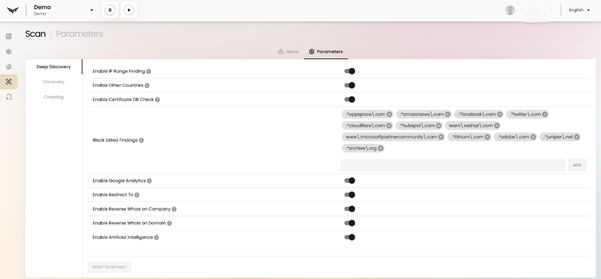

The Deep Discovery settings control how deeply the scan should expand beyond original items and enable passive expansion into related domains and IPs.

These settings comprise:

• Enable Google Analytics
• Enable Redirect To
• Enable Reverse Whois on Company
• Enable Reverse Whois on Domain
• Enable Artificial Intelligence
• Enable IP Range Finding
• Enable Other Countries
• Enable Certificate DB Check.

(See Key to All Scan Settings)

The Discovery settings define how certificates, WHOIS records, or DNS data are used during asset identification. They also include or exclude external service lookups.

These settings comprise:

• Enable Subdomain Finder
• Whitelisted IP Locations
• HTTP Ports
• HTTPS Ports
• Enable Port Scanning
• Port Scanning Blacklisted IPs
• Enable Responsive IP Search.

(See Key to All Scan Settings)

3. Crawling Settings (Static and Deep Discovery)

The crawling settings determine how web crawling will be handled (depth, timeouts, limits). They are useful for applications and URLs with complex structures.

These settings comprise:

• Max Number of Pages
• Enable Number of Pages Per Application
• Find Application From Certificates
• Enable Sitemap Check
• Enable Fast http Port Checking
• Page Timeout
• Render Delay
• Time To Render
• Max Concurrent Crawling.

(See Key to All Scan Settings)


Key to All Scan Settings:

• Enable Number of Pages Per Application: Applies the “Max Number of Pages” per Application, instead of for the whole Project. (Default value: True)


• Enable Sitemap Check: The Scanner will try to find sitemap files to crawl more URLs. (Default value: True)

Scan execution: how our scans work

Our Discovery scans use a range of different techniques to map out external attack surface. Most are passive. The only exception is when the scan connects to an application and renders it to build a map (similar to what a visitor sees on browsing your application).

Scan results returned are of a discovery or hygiene nature for applications, certificates and domains.

See also:

• Running a Scan
• Working with Scan Items
